Milktronics is a company specialized in online hygienic turbidity meters for the milk process, both in CIP and fat level detection. We are committed to helping our customers optimize their process while reducing operating costs by offering sensors with new technology using optical measurement.

Milktronics is the official SATRON INSTRUMENTS distributor for USA.

REDUCES COSTS IN MILK WASTE AND ACID!! HYGIENIC TURBIDITY SENSOR WITH NO MAINTENANCE REQUIRED!

Designation Light source Span, min Span, max
VOM 640nm 1000 FTU 5000 FTU
VOC 880nm 1000 FTU 6000 FTU
VOF 460nm-950nm 50 FTU 1500 FTU
VOD 460nm-950nm 50 FTU 1500 FTU

Features:

  • Can be placed in a sewer -100% waterproof stainless steel!
  • Detects difference between Water-Milk-Water, FAT level
  • 3-A and EHEDG certifications
  • 2-16 points of calibration to better fit the algorithmic curves
  • Can measure 4 quantities at the same time thanks to 2 relays
  • Remote electronics avalaible
  • Very easy to set up with PC and HART modem
  • 2x 4-20mA loops

WITH THE PURCHASE OF 2 VO SENSORS, PC IS INCLUDED!

Products








Example of Turbidity sensor with 2 point calibration.


Example of Turbidity sensor with 6 points calibration.


Tri clamp


Sensor without display

Hygienic Visible light turbidity sensor for dairies VOM

The VOM is:

  • An Online Hygienic Turbidity sensor Meter for food and beverage industries.
  • Using back-scattering with visible light.
  • Measures FTU, NTU, FNU, %, mg/L, g/dm3 and ppm at 640nm wavelength.
  • Measures up to 4 quantities at the same time!!!
  • Maintenance-free turbidity !! No Wiper!!
  • 3-A and EHEDG certifications.
  • Remote electronics available.
  • Quick ROI !! Save money in Clean-In-Place (CIP)!!!
  • Process up to 400°F!  2..16 points calibration!! 2mA loops, 2 alarms etc...

Applications: Any liquid where turbidity can be measured, water-milk detection, acid detection, CIP optimization, whiteness of melted wax for candle factories, Milk in Glycol, leakage detection in sewers, sugar mills, waste and water re treatment plants.


Downloads

Datasheet for turbidity meters Datasheet for turbidity meters
installation instruction for VO sensor ENGLISH installation instruction for VO sensor ENGLISH
installation instruction VO FRENCH installation instruction VO FRENCH
VO Specs Summary VO Specs Summary
Qty.





Remote electronics option available.




Sensor without display


6 points calibration curve

Hygienic Infra Red turbidity sensor for dairies VOC

The VOC is:

  • Online Hygienic Turbidity Infra red meter for food and beverage industries
  • FTU, NTU,FNU,%,mg/L,g/dm3 and ppm at 880nm wavelength
  • Measures up to 4 quantities at the same time!!!
  • Maintenance-free turbidity ! No Wiper!!
  • FAT / protein monitoring! repeatability <  0.1%
  • 3-A and EHEDG certifications
  • Measures indirectly inline COD/TSS
  • Quick ROI !! Cost savngs in Clean-In-Place (CIP)!!!
  • same features as VOM and VO DUAL

Applications: Water-milk detection, FAT level monitoring, Separation of FAT level, CIP optimization in dayries, sugar mills.


Downloads

Datasheet for turbidity meters Datasheet for turbidity meters
Hygienic certification VO EHEDG Hygienic certification VO EHEDG
Installation instruction for VO sensor ENGLISH Installation instruction for VO sensor ENGLISH
installation instruction for VO sensor FRENCH installation instruction for VO sensor FRENCH
VO Specs Summary VO Specs Summary
Qty.


Hygienic Low range turbidity sensor Dual

The VOD is:

  • An Online Hygienic Turbidity Meter for food and beverage industries.
  • FTU, NTU, FNU, %, mg/L, g/dm3 and ppm at 640nm wavelength.
  • Maintenance free turbidity !! No Wiper!!
  • 3-A and EHEDG certifications.
  • Remote electronics available.
  • Quick ROI !!
  • 2..16 points of calibration!! 2mA loops, 2 alarms etc...
  • Same features as VOM and VOC.
  • Very low turbidity measured!
  • Perfect for condensate turbidity after evaporation in dayries.

Applications: difference between water and soda, measure pulp quantity in orange juice, possibilities are endless!!


Downloads

datasheet for DUAL turbidity meters datasheet for DUAL turbidity meters
VO Specs Summary VO Specs Summary
Qty.

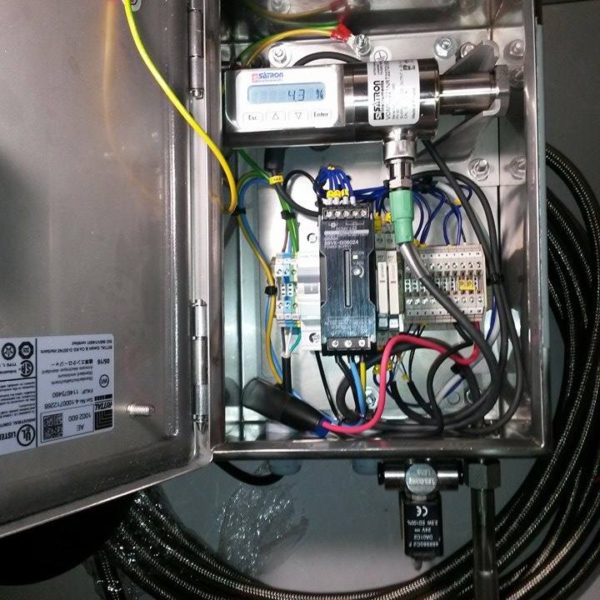

Sewer sensor measurement head. 100% water proof



Turbidity sensor for dairies Sewer VO

This Sewer VO is:

  • An Online Turbidity Meter .
  • Using back-scattering.
  • 100% waterproof and acid proof.
  • FTU, NTU, FNU, %, mg/L, g/dm3 and ppm at 640nm wavelength.
  • Measures up to 4 quantities at the same time!!!
  • Maintenance free turbidity !! No Wiper!!
  • detects at once a leaking process or mistakenly opened valve
  • measure indirectly COD/TSS
  • VERY FAST ROI !!!

Applications:  Food and beverage industries sewers.Dairies, sugar mills, waste and water re treatment plants, pulp and paper industries.

 PRICE RANGE: 4800-5200 US$

Downloads

Datasheet for Sewer Turbidity meters Datasheet for Sewer Turbidity meters
VO Specs Summary VO Specs Summary
Qty.

Any couplings available!

Process Couplings

All couplings needed available, easy to weld. Process couplings for Satron Transmitters for different purposes from many different materials.


Downloads

datasheet for Couplings datasheet for Couplings
Qty.
