SUmp level transmitter

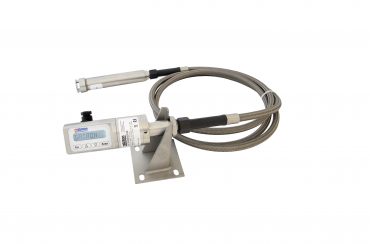

Level sensor VV Serie for sumps or open tank

Level sensor VV Serie for sumps or open tank

Perfect for difficult conditions such as dairies sump, chemical or sugar plants.

100% stainless steel including the cable.

Power 24VDC Output 4-20mA

Downloads

Clear
SKU: N/A Category: Tags: , ,

Description

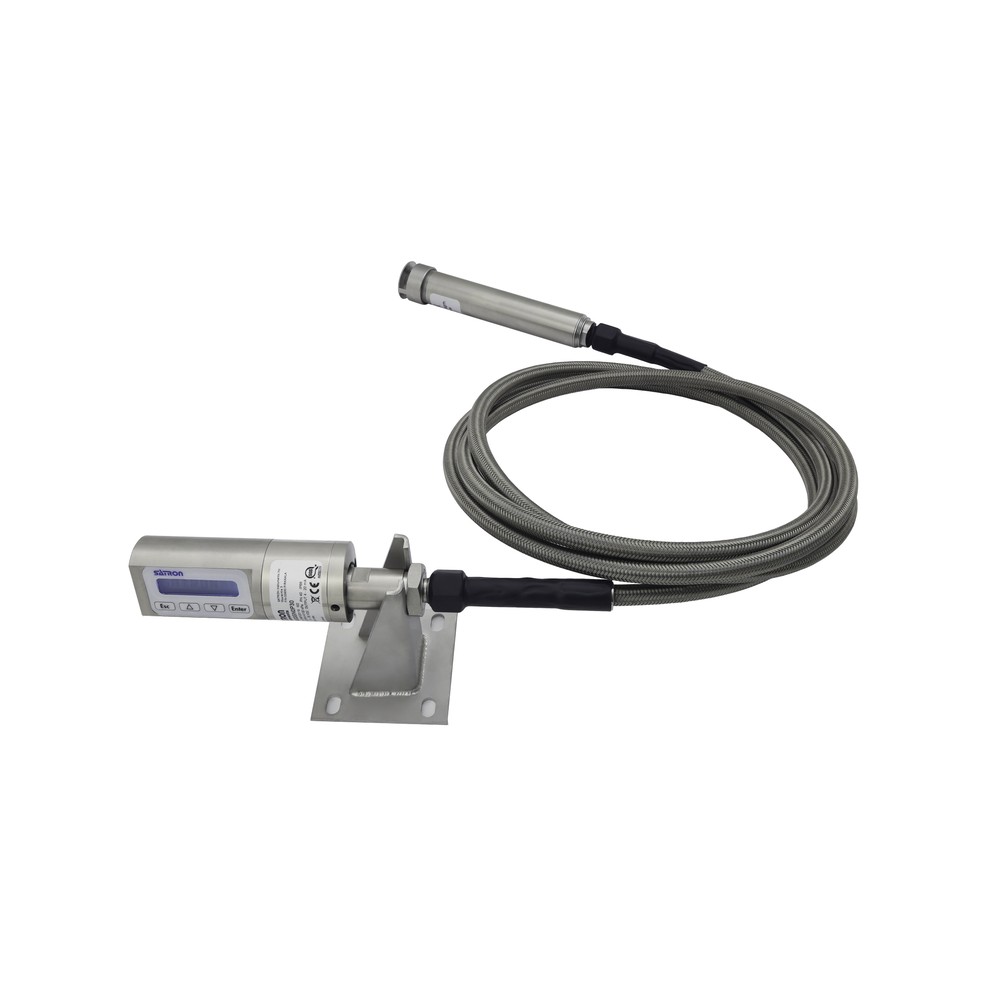

SATRON VV is used for 0-1,4 kPa..0-0,05 MPa. ranges. The transmitter communicates in a 2-wire system. SATRON VV pressure transmitter is suitable for liquid level measurements in ground and rock tanks, and in open channels and ships' tanks. SATRON VV pressure transmitter can be used in corrosive conditions and to measure contaminating liquids. Possible foam on the surface of the measured liquid does not disturb the measurement. SATRON VV does not require compressed air supply. The transmitter's sensor is piezoresistive. The rangeability is 25:1. The transmitter communicates digitally using the HART® protocol.

Measuring Range: -100...+500 kPa

Adjustability: 0-4kPa...0-0,5 MPa
Applicability: Corrosive conditions and to measure contaminating liquids., Liquid level measurements in ground and rock tanks and in open channels and ships' tanks

Satron Instruments

Additional information

Pressure range

-35…+35 kPa (-350…350 mbar), -100…+100 kPa (-1000…1000 mbar), -100…+500 kPa (-1000…5000 mbar)

Material

Aisi316L

Cable length

15 feet, 25 feet, 35 feet
