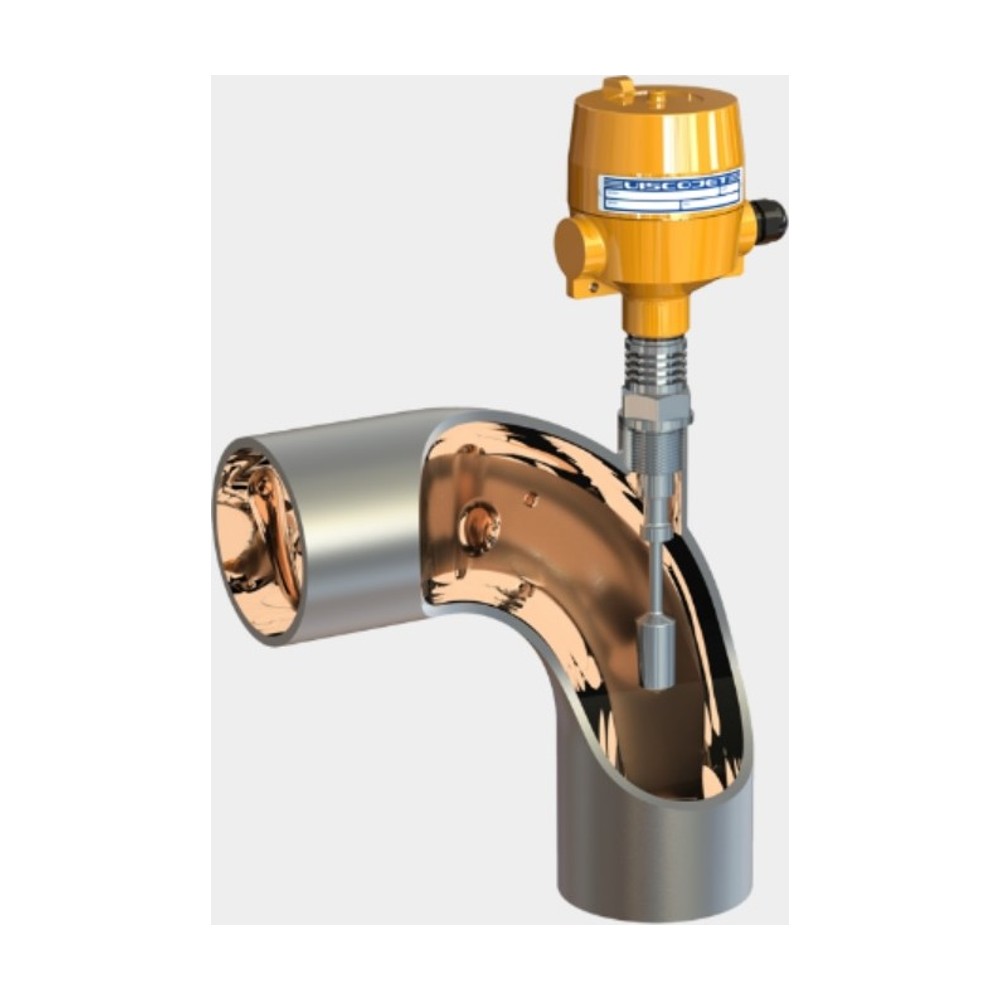

Hydramotion ViscoJet VJ1 Inline Viscometer
Hydramotion ViscoJet is a compact online viscometer for continuous process viscosity measurement.
Features and configuration
- Designed for installation in process equipment.
- Available signal and processor arrangements depend on the ordered version.
- Application selection considers fluid, temperature, pressure, and connection.
Selection help
Send the complete VJ1 model code and installation details so Milktronics can confirm the required measurement range and electrical configuration.
Manufacturer resources
Hydramotion product information and support
Detailed specifications
VISCOJET VJ1 SPECIFICATION | ||
PERFORMANCE | Range | 0 – 1,000 cP |
| Measurement Time | 1 second | |
| Accuracy | 1% of reading or +/- 0.1cP | |
| Repeatability | 0.3% of reading or +/- 0.05cP | |
OUTPUTS / INPUTS | Analog | 2 × 4-20mA configurable, representing viscosity, ref. viscosity, or temperature |
| Digital | RS485 ModBus Data Link to host system or PC running ViscoLink | |
| Power | 24v DC @ 80mA | |
TEMPERATURE | Integral Thermometer | Integrated temperature measurement |
| Standard Range | -50 °C to 150 °C | |
| Extended Range | To order for greater than 150 °C * | |
PRESSURE | Standard Range | 50 Bar |
| Extended Range | To order for greater than 50 bar * | |
PIPE CONNECTION | Standard Fitting | 3/4” or 1” BSPP / NPS, 1.5” cone-seat (Swagelok™) |
| Special Fitting | Non-standard process connection to order * | |
ELECTRICAL CONNECTION | Cable Length | As required – not affected by cable length up to 1000m |
| Cable Type | Any standard instrument cable | |
CONSTRUCTION | All welded, crevice-free | |
MATERIALS | Head | SS316 ( EN 1.4401) |
| Sensor | SS316 ( EN 1.4401) | |
| Sensor/Fitting Options: | Alloy C22 (EN 2.4602) | |
| Alloy C276 (EN 2.4819) | ||
| S32750 Duplex Steel (EN 1.4410) | ||
| Special Materials: | Non-standard materials to order * | |
SURFACE FINISH | Standard | N6 0.8 Ra |
| Special Finish | Non-standard finish options and coatings to order * | |
WEIGHT | 3Kg | |
INGRESS PROTECTION | Standard | IP67 |
SOFTWARE | ViscoLink data viewing and logging PC software | |
* SPECIAL OPERATIONS | Custom variations to instrument specification and dimensions routinely provided by our dedicated Special Operations division | |
