Description

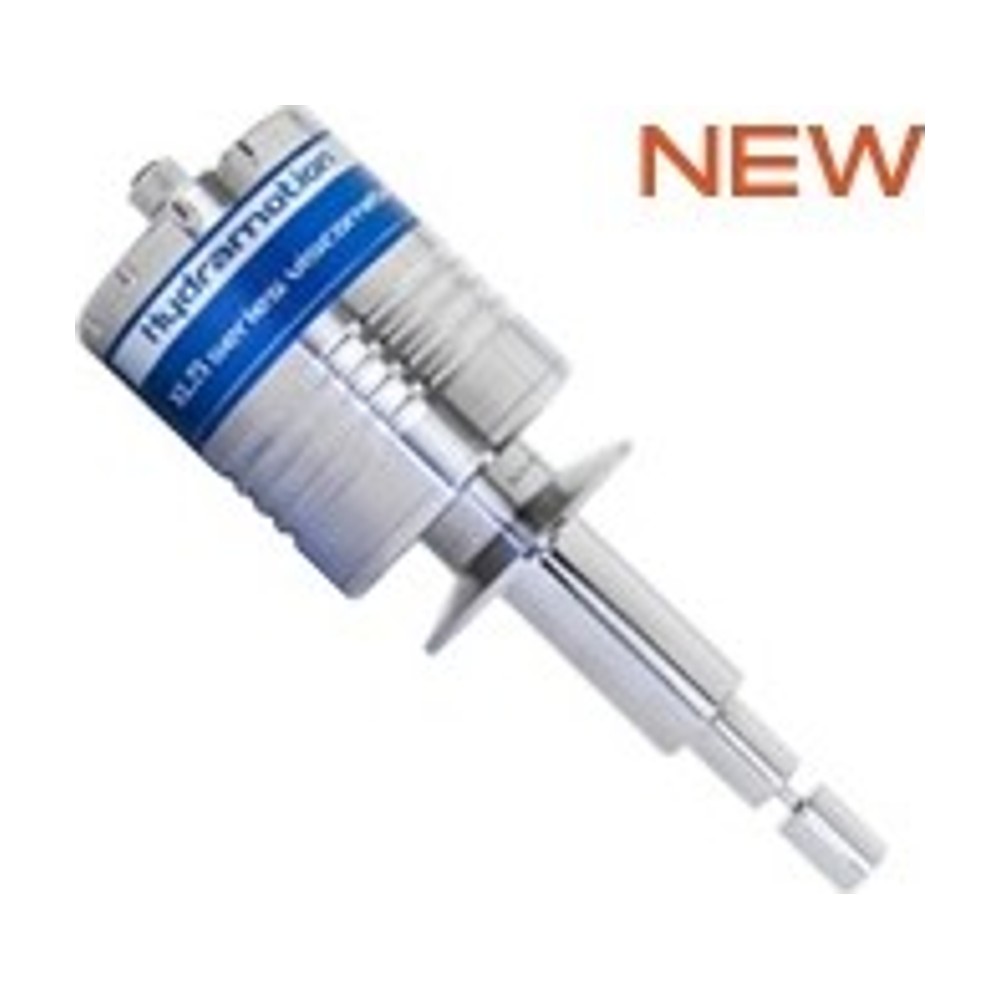

Hydramotion XL5 Compact Inline Viscometer
Hydramotion XL5 provides inline viscosity measurement in a compact package suited to smaller process equipment.
Features and configuration
- 15 mm sensor size and approximately 1.2 kg instrument weight.
- All-welded, open sensor construction for cleaning.
- CIP-compatible design.
- Process fittings selected to match the installation.
Selection help
Provide the fluid, viscosity range, process temperature and pressure, and fitting dimensions. Confirm the applicable certification and ordered configuration.
Manufacturer resources
Hydramotion product information and support
Detailed specifications
XL5 SPECIFICATION | ||
PERFORMANCE | Range | From 0 – 1cP to 0 – 10 9 cP over 10 models |
| Measurement Time | 1 second | |
| Accuracy | 1% of reading or +/- 1 digit | |
| Repeatability | 0.3% of reading or +/- 1 digit | |
TEMPERATURE | Standard Range | -20 °C to 150 °C |
PRESSURE | Standard Range | To process fitting |
| Extended Range | To order for extreme pressure * | |
PROCESS CONNECTION | Standard fitting | All types of process fitting |
| Special fitting | Non-standard process connection to order * | |
ELECTRICAL CONNECTION | Cable Length | As required – not affected by cable length up to 1000m |
| Connector | Binder 4-way | |
| Power | VP Processor powered | |
SAFETY CERTIFICATION | Hazardous Area | All instruments available for Ex Hazardous Area, explosive atmospheres |
| Ga Ex ia IIC T1…T6 | ||
CONSTRUCTION | All welded, crevice-free | |
MATERIALS | Head | SS316 ( EN 1.4401) |
| Fitting | As Required | |
| Sensor | SS316 ( EN 1.4401) and SS316L ( EN 1.4404) as standard | |
| Sensor/Fitting Options | Alloy C22 (EN 2.4602) | |
| Alloy C276 (EN 2.4819) | ||
| S32750 Duplex Steel (EN 1.4410) | ||
| Special Materials: | Non-standard materials to order * | |
SURFACE FINISH | Standard | N7 0.4 Ra |
| Finish Options | Fluoropolymer | |
| Electropolished | ||
| Electroplated | ||
| Special Finish | Non-standard finish options and coatings to order * | |
INGRESS PROTECTION | Standard | IP67 |
SOFTWARE | ViscoLink data viewing and logging PC software | |
* SPECIAL OPS | Custom variations to instrument specification and dimensions routinely provided by our dedicated Special Operations division | |
