Description
Model TEM-CL803 Residual chlorine analyzer

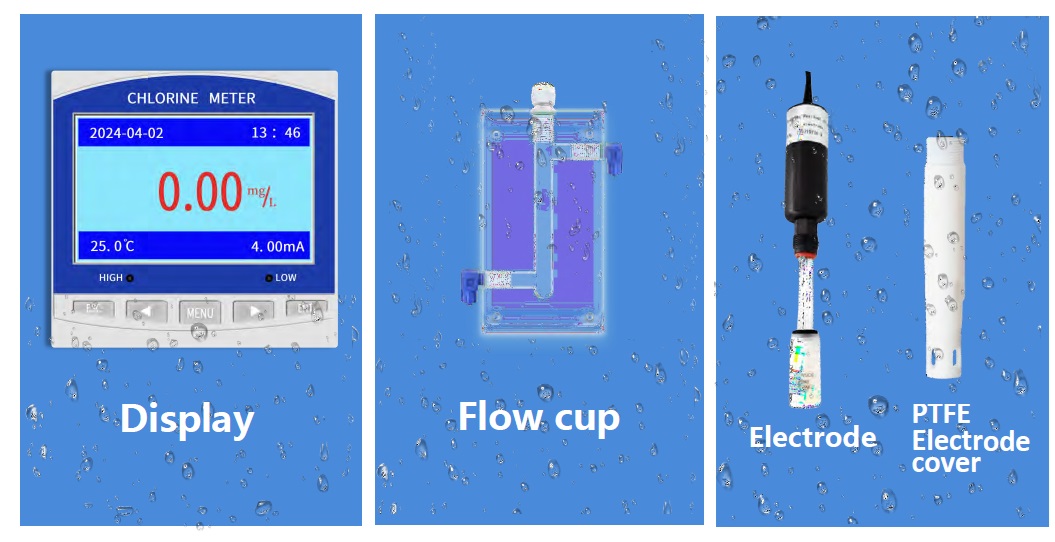

- 3.5-inch color LCD screen for a simple and user-friendly interface
- Measures residual chlorine, chlorine dioxide, and ozone
- Easily switch between residual chlorine mode and ozone mode via the menu
- Enables control of drug dosing
- Supports 4-20mA and RS485 communication protocols
- Offers multiple calibration methods
- Includes temperature compensation for accurate readings
- Protective back cover for enhanced durability and anti-interference
- Optional data saving and export functions for easy data management
- Constant voltage electrode with a simple structure, allowing for easy cleaning and replacement
- Built-in storage chip saves up to one year of historical data and supports data export via mobile Bluetooth (optional)
| Measurement range | 0~20.00mg/L, resolution 0.01mg/L; |
| Residual chlorine measurement accuracy | ±0.02pH; |
| Temperature measurement range | 0~99.9℃ (maximum -9.9~135℃); Graduation value: 0.1℃ |
| Temperature measurement accuracy | ±0.5℃; |
| Automatic temperature compensation range | 0~99.9℃,25℃ as the reference; |
| Sample flow rate | 200 to 250 mL/min |
| Minimum detection limit | 0.01mg/L; |
| Current isolation output | 4~20mA |
| Output current error | ≤1%FS |
| Input Power | 24VAC/220V/110v, 3A |
