Description

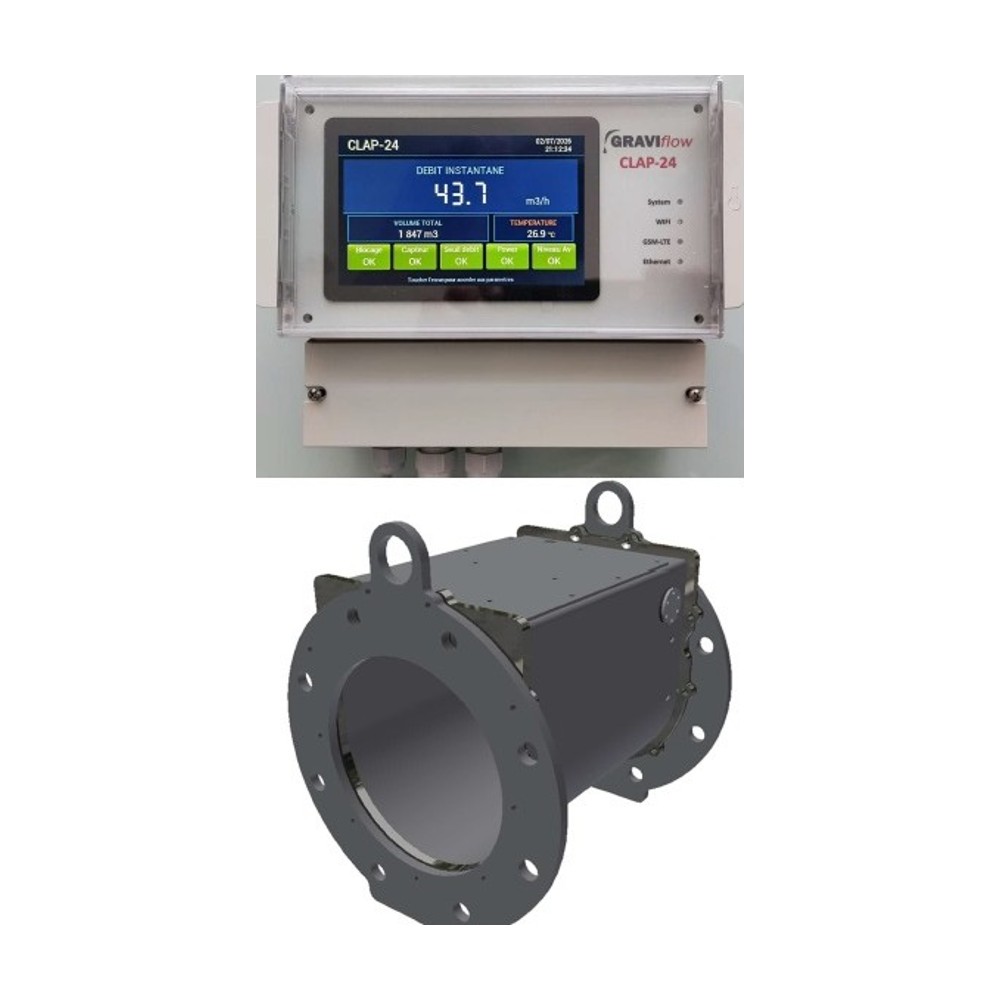

GraviFlow CLAP24 Gravity Flowmeter

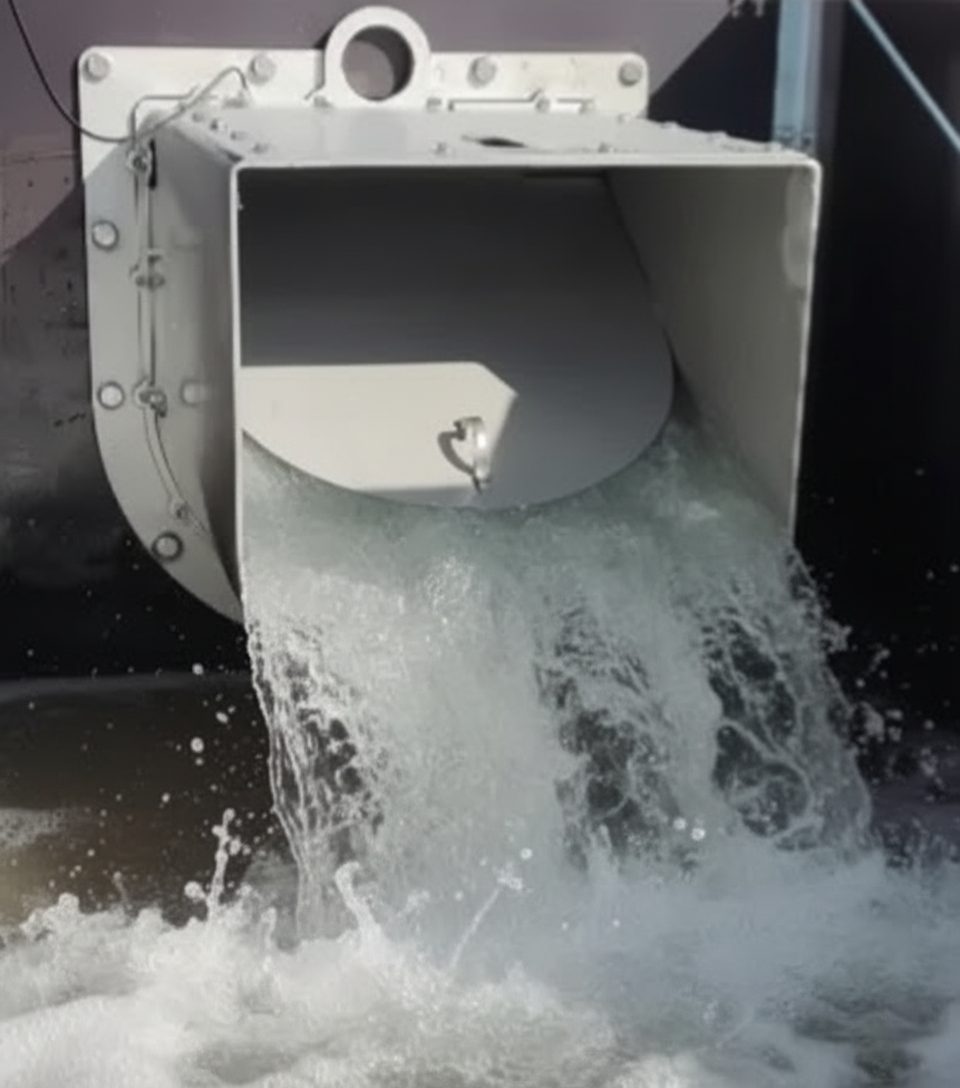

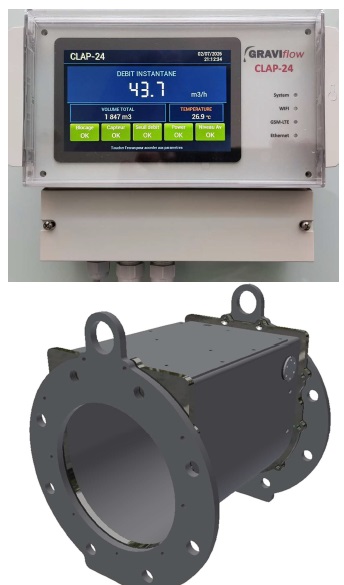

GraviFlow CLAP24 measures liquid flow in gravity-fed systems using a hinged flap and an electronic measurement unit.
Features and configuration
- DN150 / 6-inch and DN300 / 12-inch configurations covered by the linked sheets.
- 316L stainless-steel measurement cell.
- 12 or 24 V DC supply configurations.
- Analog, pulse, and control functions depend on the ordered configuration.
Selection help
Provide pipe diameter, flow range, liquid properties, installation slope, and downstream conditions. Confirm performance and available options for the installation.
Technical documents
- CLAP24 DN150 / 6-inch technical sheet (PDF)
- CLAP24 DN300 / 12-inch technical sheet (PDF)
- CLAP24 user manual, French, PDF pages 1–25 (PDF)
- CLAP24 user manual, French, PDF pages 26–50 (PDF)
Manufacturer resources
Graviflow product information and support
