Description

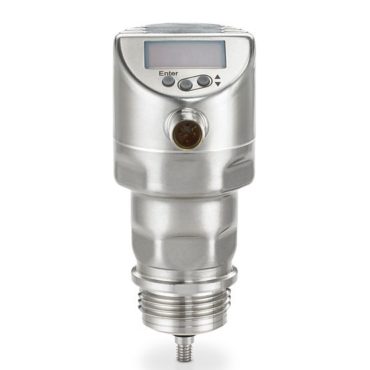

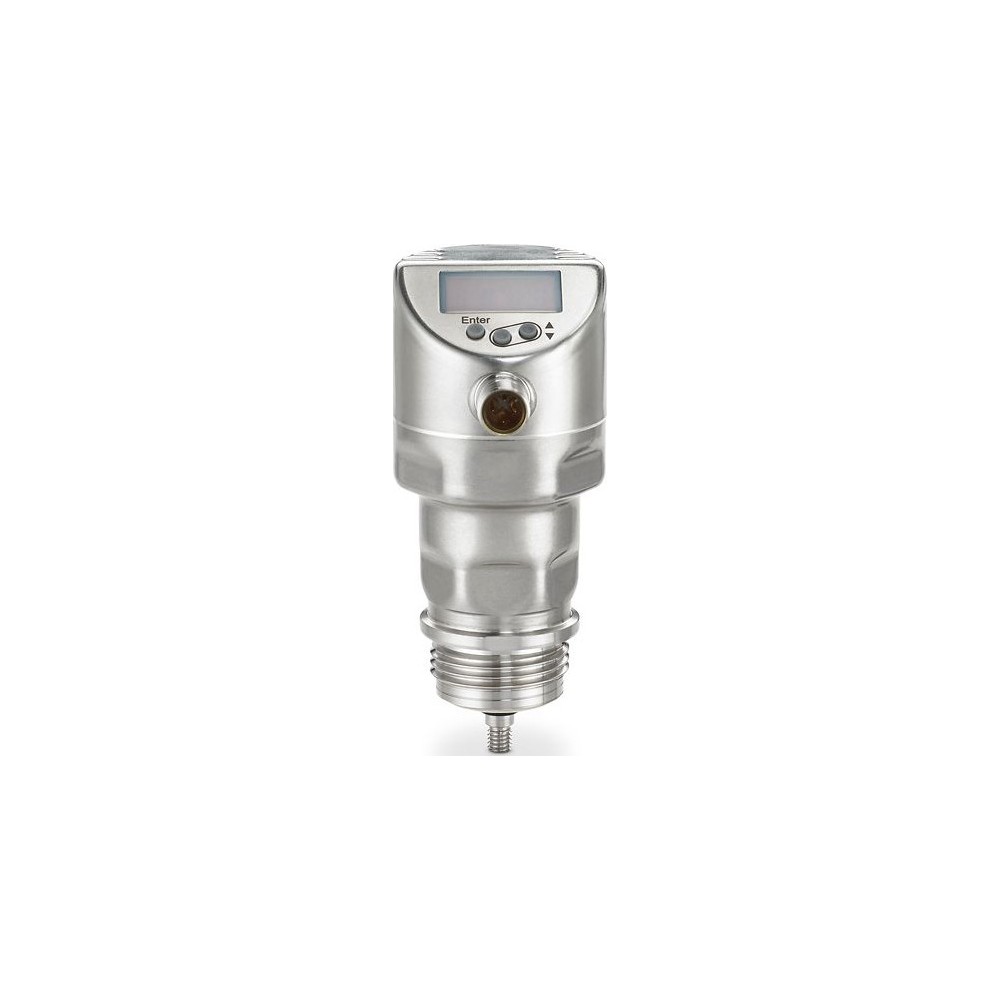

The Rosemount 326L Level Transmitter provides accurate continuous level measurements in the food and beverage industry. The transmitter is equipped with hygienic certifications (3-A, FDA, EC 1935, etc.), a polished stainless steel housing, and the ability to withstand clean-in-place processes which allows you to minimize contamination risk and assure product safety.
Specifications
- Accuracy
- 0.28 in. (7 mm)
- Communication Protocol
- 4-20mA, IO-Link, Switch
- Measurement Range
- Up to 78.7 in. (2000 mm)
- Process Temperature
- Up to 302°F (150°C)
- Process Wetted Material
- 316L SST, EPDM, PEEK
- Diagnostics
- Basic diagnostics
- Certifications/Approvals
- 3-A, FDA, EC 1935, EC 2023, see product data sheet for complete list of certifications
-
Features
- G1" process connection is compatible with full suite of hygienic process connection adapters
- Compact form factor enables installation in applications with space constraints
- M12 electrical connector allows for simple installation and start-up
- Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools
- Configurable switch output for indication of abnormal level conditions
- Designed to withstand CIP processes as well as external washdowns (IP69K rated)
Code : 326LG10A
