turbidity meter satron
FAT nalyzer in Ddairies
High FAT 0-60% Moisture analyzer

High FAT 0-60% Moisture analyzer

FAT in cream analyzer.

Perfect for cream consistency monitoring on a separator discharge.
Range 0-60%. ROI is very fast !!!!
Direct reading on display
SKU: VOMNJ223N0T009TB VOMJ221L0V429TB VOMJ223L0V429TB VOMJ221H0T009TB VOMJ223H0T009TB Categories: , , Tags: , , , ,

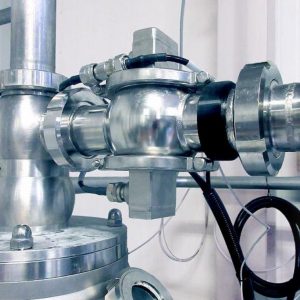

This meter was designed to detect very small moisture changes and cream FAT % up to 60%. Easy to install on a separator.

  • Highly sensitive to detect water or moisture in cream up to 60% consistency
  • Perfect for cream consistency and FAT% measurement
  • Process temperature: 0-100% designed for CIP
  • Power 24VDC Output (1) 4-20mA Tubidity, Output (2) 4-20mA Temperature
  • Process fitting: tri-clamp 1.5", 2", 2,5", 3", welded coupling or flange
  • Different display option available
  • cream fat monitoring triclamp separator vom satron 3A

Applications in dairies:

-Cream cheese Moisture

-Milk cream FAT%

-Any thick product consistency

FAT nalyzer in Ddairies

Most common codes for this unit:

With local display: VOMNJ221N0T009TB . VOMNJ223N0T009TB

With remote display: VOMJ221L0V429TB .  VOMJ223L0V429TB

Without display: VOMJ221H0T009TB .  VOMJ223H0T009TB

Turbidity meter with UL 3A EHEDG CE

Additional information

Weight 6 lbs
Dimensions 20 × 15 × 15 in
Tri-clamp size

1.5", 2"

Display options

No display, Local display, remote display

High temp option 360F continuous

Yes, No
