Description

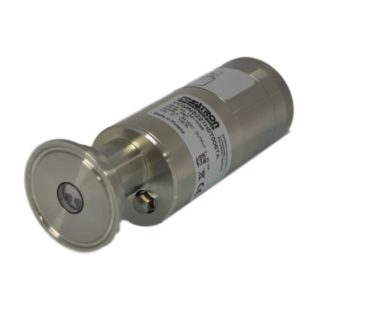

Online turbidity / Suspended solids meter
Perfect tiny phase transition sensor for Milk, cream, dairy products, CIP, HTST. Water to product to water , spill detection. ROI is very fast.
The technology is coming from Satron Instrument Finland www.satron.com
- Power: 24VDC Output 4-20mA active online turbidity
- Process coupling: tri-clamp 1.5", 2"
- Turbidity range 0-300 000 NTU adjustable
- Response time: 0 to 30 sec adjustable
- Lens: Sapphire
- Color independent 880 nm Near infra red (other wavelengths available)
- Ambient: -22°F to 176°F
- Process temperature : 212°F continuous, 320°F with high temperature option
- Deviation 0.1%
- Operating pressure -1 to 30Bar (-14 to 435PSI)
- No drift possible, no re-calibration.
- Seals : EPDM, compliant 3A and EHEDG and FDA
- HART compatible
- Approved : 3A, EHEDG, CE, SGS (UL)
With the same design meter you can also Monitor FAT.
